Screw Conveyor Manufacturers in Pune - Synergy Global Engineering

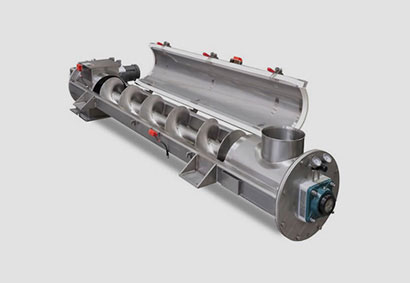

Synergy Global Engineering, one of the former screw conveyor manufacturers in Pune, suppliers, and distributors in Pune. We are providing the new technological screw conveyor that is used for handling bulk types of materials and rotates them into screws and controls the rate. These are used to feed materials and maintain continuous and quantitative flow.
Our screw conveyors have numerous benefits. They are powerful, flexible, and efficient. They require less maintenance but are able to handle heavy materials properly. Equipped with advanced features, they provide a modern complete solution for efficient material handling and mixing.
Trusted Screw Conveyor Manufacturers in Pune for Bulk Material Handling:
The new modular design and automated sensors, which are connected in these screw conveyors, help to increase performance and help them to be used in various types of applications, such as material handling industries, automotive, and food and beverage industries.
Our multiple types of screw conveyor:
Being the best screw conveyor suppliers in Pune, all types of screw conveyors are made with the best quality of raw materials and give higher performance. Here we have listed some types, such as:
- Horizontal Screw Conveyor: Our horizontal screw conveyor is commonly used in agriculture, food processing industries, and cement plants due to its working mechanism. This can handle a bulk amount of materials in horizontal orientation, and these are typically used in applications where the highest requirement is needed for transporting bulk materials over shorter distances.
- Vertical Screw Conveyor: These conveyors are used in industrial plants where the floor space is limited, and they move materials upward or in a vertical orientation. It has a compact size, and advanced drive systems in these conveyors can improve gearbox designs load stability and reduce wear. The strong quality of materials such as stainless steel, aluminum, and cast iron helps with resisting any corrosion and being able to use them in an outside environment. For vertical material handling, solutions like bucket elevators are our ideal choice in compact spaces.
- Flexible Screw Conveyor: In these screw conveyors, a spiral-shaped screw is connected inside a flexible tube, and it is ideal for transporting bulk materials over longer distances. These screw conveyors can be installed in any kind of orientation, such as horizontal, inclined, or vertical. We have used FDA-approved stainless steel in these conveyors for using them in food and beverages and pharmaceutical industries.
- Tabular Screw Conveyor: These tabular screw conveyors are used for handling bulk amounts of materials and give superior protection against dust and environmental hazards. Our tabular screw conveyors have hermetic sealing, which can protect the materials from external contaminants and dust ingress. In these conveyors, we have used energy-efficient motors with advanced technologies and can reduce any kind of energy consumption.
Technical Specifications:
As leading screw conveyor manufacturers in Pune, our products are equipped with various advanced specifications. Here we have mentioned below a technical sheet that gives more detailed information about our screw conveyor:
| Parameter | Horizontal Screw Conveyor | Vertical Screw Conveyor | Flexible Screw Conveyor | Tabular Screw Conveyor |
|---|---|---|---|---|
| Screw Diameter (mm) | 100 - 500 mm | 100 - 500 mm | 50 - 300 mm | 100 - 500 mm |
| Length/Height (m) | Customizable | 1 - 30 m | Up to 20 m | Customizable |
| Material Construction | Carbon Steel / Stainless Steel | Carbon Steel / Stainless Steel | Carbon Steel / Stainless Steel | Carbon Steel / Stainless Steel |
| Screw Pitch (mm) | 50 - 300 mm | 50 - 300 mm | 50 - 200 mm | 50 - 300 mm |
| Motor Power (kW) | 0.5 - 50 kW | 1 - 50 kW | 0.5 - 10 kW | 1 - 50 kW |
| Capacity (m³/hr) | 5 - 500 m³/hr | 10 - 300 m³/hr | 5 - 100 m³/hr | 10 - 500 m³/hr |
| Temperature Limit | -20°C to 400°C | -20°C to 400°C | -20°C to 80°C | -20°C to 400°C |
| Inclination Angle | 0° - 15° | 90° | Flexible (0° to 45°) | Customizable |
| Bearing Type | Ball Bearings, Roller Bearings | Heavy Duty Bearings | Tapered Bearings | Heavy Duty Bearings |
| Screw Material Options | Carbon Steel, Stainless Steel | Carbon Steel, Stainless Steel | Carbon Steel, Stainless Steel | Carbon Steel, Stainless Steel |
| Loading Rate (kg/m²) | High efficiency transport | Strong vertical lift transport | Flexible loading and discharge | Smooth loading with controlled transport |
| Lubrication Options | Grease or Oil | Grease or Oil | Minimal Maintenance Lubrication | Grease or Oil |
| Wear Resistance Features | Hardened Steel, Coatings | Reinforced Coatings | Polyurethane or Coated Screws | Coated screws and hardened surfaces |
| Sealing System | Shaft Seals | End Seals and Bearings | Dust-tight Sealing | End Seals |
Key Features from Leading Screw Conveyor Suppliers in Pune:
As a screw conveyor distributors in Pune, our all types of screw conveyor are equipped with various types of features such as:
- Accurate Feeding : Our screw conveyor and belt feeder are able to feed accurate and consistent delivery of material flow, maintaining process efficiency
- Variable Speed Control: This allows the adjustment of feeding rates to match specific process requirements and throughput.
- Strong Construction: These are made from durable materials to withstand heavy-duty industrial environments and long-term use.
- Compact Design: These conveyors have a space-saving design that fits into tight installations while maintaining functionality.
- Easy Maintenance: It is designed with accessible components for quick repairs and minimal downtime.
Benefits of using our Screw Conveyor in Pune:
Being the best screw conveyor suppliers in Pune, following are the benefits of using our Screw Conveyor in Pune:
- Sealing Options: Our screw conveyors are specially designed with various sealing options, minimizing dust emissions and material loss.
- Flexibility in Orientation: They can be installed at different angles (horizontal, inclined, or vertical) to suit diverse layouts and applications.
- Energy Efficiency: It consumes less energy compared to alternative material transport systems, ensuring cost savings.
- Low Operational Noise: These are designed to operate with lower noise levels, ensuring a quieter working environment.
- Customizable Lengths and Diameters: Screw conveyors are available in various lengths and diameters, allowing tailored installations for specific processes.
Applications of our screw conveyors:
As screw conveyor distributors in Pune, our conveyors are highly used in multiple types of applications due to their overall qualities. The following are the applications of screw conveyor in Pune:
- Transporting grains and feed in agricultural facilities
- Moving cement and concrete in construction sites
- Handling chemicals in pharmaceutical and processing plants
- Transferring minerals and ores in mining operations
- Conveying food ingredients in processing industry systems
- Managing waste and recycling in industrial operations
- Handling pulp and paper materials in production
- Transporting plastics and rubber in manufacturing processes
- Moving sawdust and timber in sawmills efficiently
- Transferring asphalt and construction materials on-site
Being one of the best screw conveyor manufacturers in Pune, suppliers, and distributors in Pune, we at Synergy Global Engineering are providing the latest technological conveyors, which are highly demanded by multiple types of industries due to their working mechanisms. The new modern methodologies and technological sensors in these machines help with increasing performance. For more information, contact us today!
